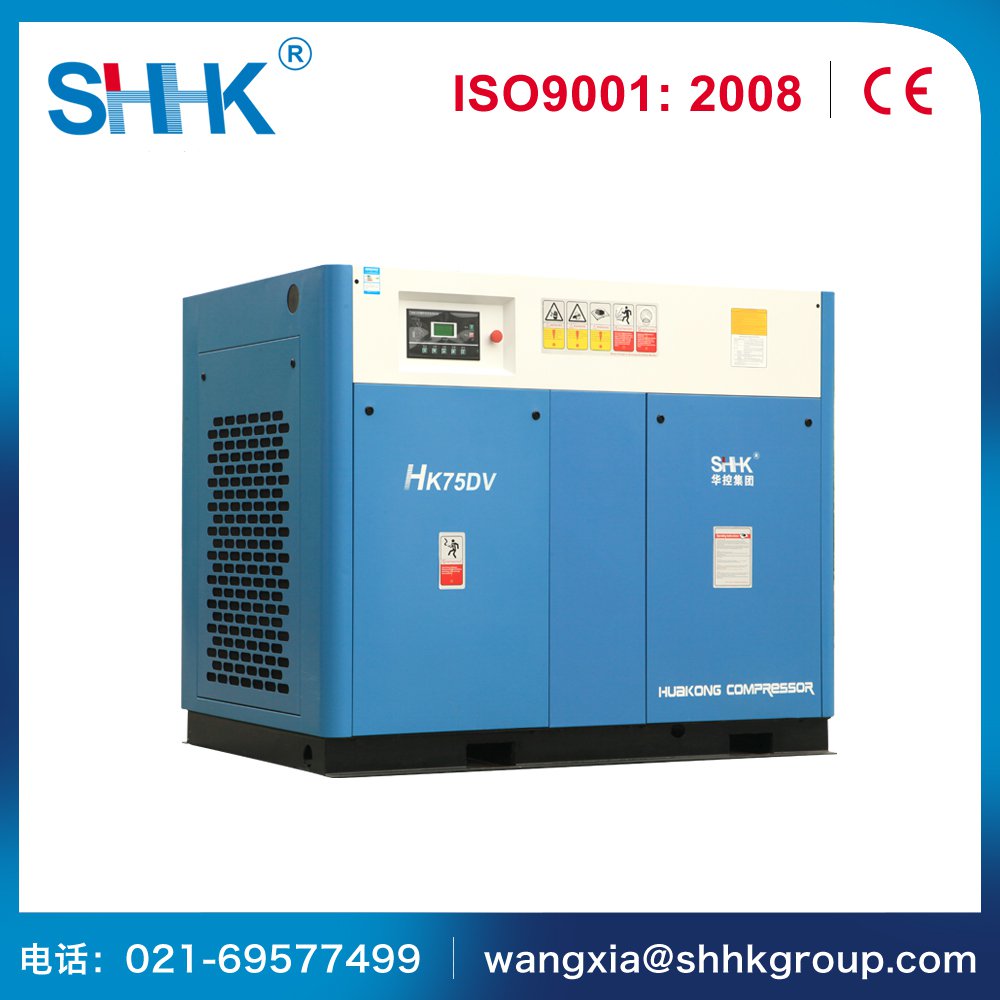

變頻 皮帶 直聯 螺桿 空壓機
品牌
華控型號
HK75DV瀏覽次數
120 次所在地區
上海 上海 嘉定區參考最低價
數量
100
———— 推薦商品 ————
變頻空壓機節能原理Energy-saving principle
變頻壓縮機通過改變電機的轉速來實現氣量控制,使產氣量和電耗平滑地跟隨氣量同步變化,當用氣量減少,供氣減少,電耗也減少,以節約能源。
優質的變頻器對變頻技術進一步改善節能效果,通過變頻器內部的PID調節器能平穩啟動,對電網沖擊小,變頻失量控制低頻啟動力矩大,運行電流小,當用氣量小時,可進行休眠狀態;大大地節約了能源,并且數據轉換精確高一體化設計故障點少。
Through changing motor speed, frequency conversion screw air compressor can
achieve volume control, so air production and electricity consumption smoothly follow the air volume changes synchronously, when air consumption reduces, air supply reduces accordingly, power consumption also reduces in order to save energy.
High-quality inverter can further improve the energy-saving effect, can smoothly start through the internal PID controller, little impact on power, large low-frequency starting torque, small running current, sleeping mode start when air consumption is small; greatly save energy, and high-precision data conversion and integrated design make fault less.
變頻空壓機特點Main Features of Frequency conversion screw air compressor
1、壓縮機主機壽命長:轉子采用不對稱型線,用球軸承和滾珠軸承支承并低轉速運行,磨損少,維修保養費用少,主機使用壽命長
2、運行更加可靠:變頻軟啟動避免了電網沖擊還減少了對電子開關和電機線圈損耗。在電機開啟和關閉時不需要過多電力,增加了對電機的保護。從而減少了對于峰值電流的需求并改善了電力因素。
3、自由設定所需壓力,保持恒壓供氣:用戶在3-13Bar范圍內任意設定壓力,不需要更換齒輪和皮帶。當用氣量增加時,機組通過轉速自動地加快來增加產氣量,使壓力不下降,確保恒壓供氣;當用氣量減少時,機組通過轉速自動地減慢來減少產氣量,使壓力不上升,確保恒壓供氣。
1, Long service life of air end: asymmetric profile rotor, with ball bearing and low speed operation, less wear, less maintenance cost, long service life.
2, More reliable operation: Frequency soft start can avoid the impact on the grid and also reduce the loss of electronic switches and motor coil. It does not need too much power when the motor is turned on and off , this can increase motor protection. Thereby reduce the need for peak current and improve power factor.
3, Freely set the desired pressure, keeping air supply under constant pressure: user can set any pressure within 3-13Bar, no need to replace the gears and belts. When the air consumption increases, the unit automatically speed up to increase air production while the pressure does not drop to ensure constant air supply; When the air consumption reduces, unit speed automatically slow down to reduce air production, so that the pressure does not rise to ensure constant supply.
皮帶變頻螺桿空壓機技術參數 Belt driven frequency conversion screw air compressor technical parameter
型號 |
排氣量m³/min |
功率 |
噪音 |
出口尺寸 |
外形尺寸 |
重量 |
|||
SHHK |
Capacity(m³/min) |
Power |
Noise |
Outlet Diameter |
Dimension |
Weight |
|||
MODEL |
0.7Mpa |
0.8Mpa |
1.0Mpa |
1.3Mpa |
KW/HP |
dB(A) |
INCH |
WxDxH mm |
Kg |
HKBV-5.5 |
0.9 |
0.8 |
0.72 |
0.61 |
5.5/7.5 |
65±2 |
G3/4" |
780x650x1050 |
330 |
HKBV-7.5 |
1.1 |
1.0 |
0.9 |
0.7 |
7.5/10 |
65±2 |
G3/4" |
780x650x1050 |
350 |
HKBV-11 |
1.7 |
1.6 |
1.3 |
1.1 |
11/15 |
65±2 |
G3/4" |
1100x750x1150 |
420 |
HKBV-15 |
2.4 |
2.2 |
2.0 |
1.6 |
15/20 |
68±2 |
G3/4" |
1100x750x1150 |
430 |
HKBV-18 |
3.0 |
2.9 |
2.6 |
2.3 |
18.5/25 |
68±2 |
G3/4" |
1100x750x1150 |
460 |
HKBV-22 |
3.7 |
3.6 |
3.1 |
2.5 |
22/30 |
68±2 |
G1" |
1300x850x1080 |
650 |
HKBV-30 |
5.2 |
5.0 |
4.3 |
3.7 |
30/40 |
70±2 |
G1" |
1300x850x1080 |
700 |
HKBV-37 |
6.5 |
6.2 |
5.6 |
4.7 |
37/50 |
70±2 |
G11/2" |
1460x960x1300 |
920 |
HKBV-45 |
8.0 |
7.3 |
6.8 |
5.8 |
45/60 |
70±2 |
G11/2" |
1460x960x1300 |
1100 |
HKBV-55 |
10.1 |
9.5 |
8.7 |
7.3 |
55/75 |
72±2 |
G2" |
1720x1200x1380 |
1500 |
直聯變頻螺桿空壓機技術參數Direct driven frequency conversion screw air compressor technical parameter
型號 |
排氣量m³/min |
功率 |
噪音 |
出口尺寸 |
外形尺寸 |
重量 |
|||
SHHK |
Capacity(m³/min) |
Power |
Noise |
Outlet Diameter |
Dimension |
Weight |
|||
MODEL |
0.7Mpa |
0.8Mpa |
1.0Mpa |
1.3Mpa |
KW/HP |
dB(A) |
INCH |
WxDxH mm |
Kg |
HK-11DV |
1.6 |
1.5 |
1.3 |
1.1 |
11/15 |
65±2 |
G3/4" |
1150x680x1000 |
450 |
HK-15DV |
2.5 |
2.3 |
2.1 |
1.9 |
15/20 |
65±2 |
G3/4" |
1150x680x1000 |
450 |
HK-18DV |
3.2 |
3.0 |
2.6 |
2.2 |
18.5/25 |
65±2 |
G1" |
1350x850x1080 |
600 |
HK-22DV |
3.7 |
3.6 |
3.2 |
2.7 |
22/30 |
68±2 |
G1" |
1350x850x1080 |
650 |
HK-30DV |
5.2 |
5.0 |
4.3 |
3.7 |
30/40 |
70±2 |
G1" |
1350x850x1080 |
850 |
HK-37DV |
6.5 |
6.2 |
5.6 |
4.8 |
37/50 |
70±2 |
G11/2" |
1460x960x1300 |
920 |
HK-45DV |
8.0 |
7.3 |
6.8 |
5.8 |
45/60 |
70±2 |
G11/2" |
1460x960x1300 |
1100 |
HK-55DV |
10.1 |
9.5 |
8.7 |
7.5 |
55/75 |
72±2 |
G2" |
1720x1200x1380 |
1500 |
HK-75DV/W |
13.5 |
12.8 |
11.3 |
10.1 |
75/100 |
72±2 |
G2" |
1860X1260X1520 |
1850 |
HK-90DV/W |
16.0 |
15.5 |
13.5 |
12.0 |
90/125 |
73±2 |
G2" |
1860X1260X1520 |
2200 |
HK-110DV/W |
20.8 |
19.5 |
17.5 |
14.5 |
110/150 |
73±2 |
DN65 |
2160x1380x1780 |
2800 |
HK-132DV/W |
24.0 |
23.0 |
20.0 |
16.5 |
132/175 |
73±2 |
DN65 |
2160x1380x1780 |
3000 |
HK-160DV/W |
28.5 |
27.8 |
24.0 |
22.0 |
160/220 |
75±2 |
DN80 |
2650x1750x1850 |
3500 |
HK-185DV/W |
32.5 |
31.2 |
27.0 |
25.5 |
185/250 |
77±2 |
DN80 |
2650x1750x1850 |
3800 |
HK-200DV/W |
34.5 |
33.0 |
29.5 |
27.0 |
200/270 |
77±2 |
DN80 |
2650x1750x1850 |
4200 |
HK-220DV/W |
36.5 |
34.5 |
31.0 |
28.0 |
220/300 |
80±2 |
DN100 |
3030x1910x2000 |
4600 |
HK-250DV/W |
43.0 |
41.5 |
37.0 |
34.0 |
250/350 |
80±2 |
DN100 |
3030x1910x2000 |
5000 |
HK-280DV/W |
51.2 |
50.0 |
45.0 |
40.0 |
280/375 |
82±2 |
DN125 |
4200x2300x2250 |
7400 |
HK-315DV/W |
56.0 |
55.2 |
50.0 |
42.5 |
315/400 |
82±2 |
DN125 |
4200x2300x2250 |
7600 |
HK-355DV/W |
65.0 |
63.5 |
54.5 |
46.5 |
355/450 |
82±2 |
DN125 |
4200x2300x2250 |
8100 |
HK-400DV/W |
75.2 |
74.2 |
65.4 |
58.0 |
400/535 |
82±2 |
DN125 |
4200x2300x2250 |
8350 |
