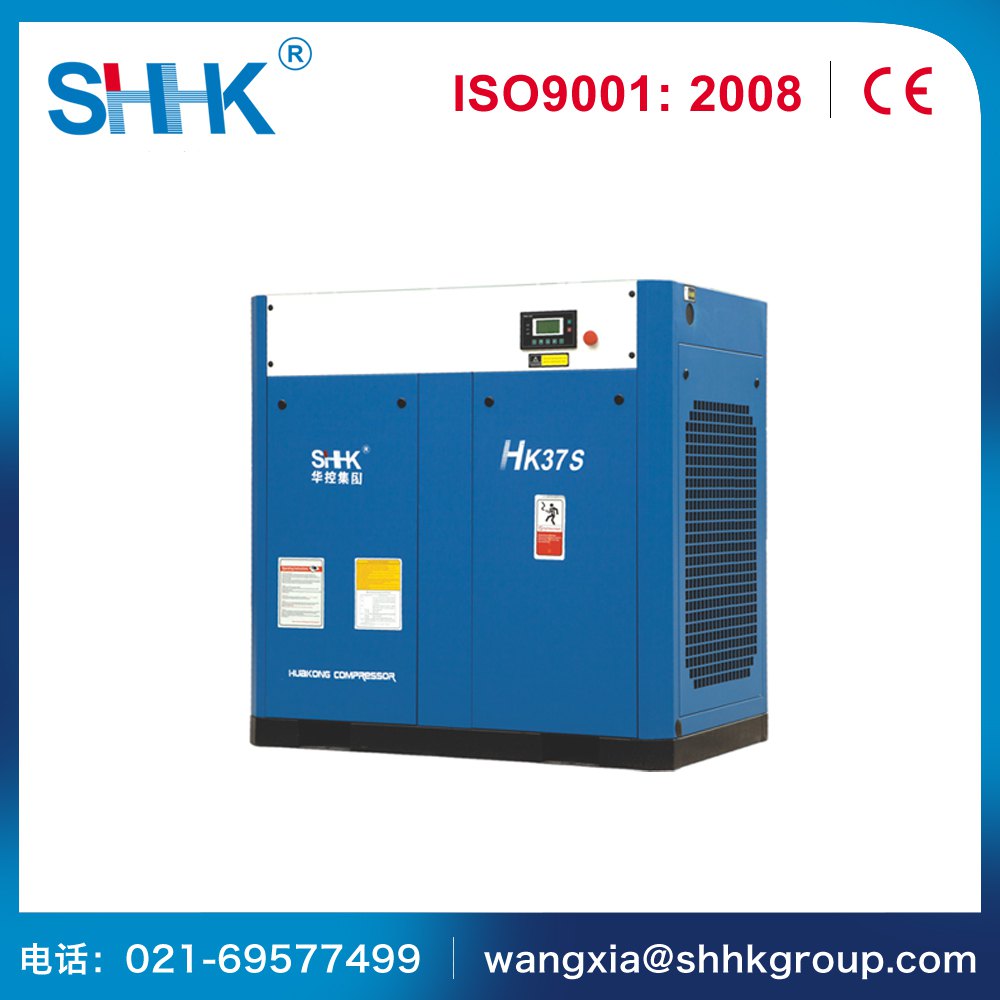

HK37S水潤滑無油螺桿空壓機Oil free water lubrication screw air compressor
水潤滑 無油 螺桿 空壓機
品牌
華控型號
HK37S瀏覽次數
125 次所在地區
上海 上海 嘉定區參考最低價
數量
100
———— 推薦商品 ————
商品介紹
無油螺桿空氣壓縮機廣泛應用于醫藥、食品、電子、化工、包裝等要求高品質氣源的行業。100%純凈的壓縮空氣是保障工藝流程和產品質量必要的舉措，你可以無風險地、安全地生產出你的高端產品。
Oil Free Screw Air Compressor is widely applied in the industry where require high-quality air supply, such as medicine, food, electronic and chemical industry. 100% pure compressed air is the imperative measure to guarantee process flow and product quality, which can help you manufacture the high-end products without any risk.
產品特點：
世界頂級的壓縮構造——Z螺桿
Top Compression Structure in the World——Z Air End
|
高科技的結晶 在世界范圍內廣泛應用 “Z螺桿”是由一根主動輪轉子和兩套高精密被動門轉子共同組成，實現動態平衡，震動小、噪聲低、壽命長。 |
High-tech crystal Widely used in the world. “Z air end” is composed of one active rotor and two sets high-precision passive rotors, to achieve the characteristics of dynamic equilibrium, small vibration, low noise and long service life. |
無油——完全不用油Oil Free ——Totally Oil Free
|
HKCW華控無油水潤滑Z螺桿壓縮機是提供清潔、無污染的100%無油壓縮空氣，其零排放無污染的處理方式，能有效地保護環境，維護清潔。 |
HKCW oil free water lubrication screw air compressor is a kind of compressor that provides clean, pollution-free, 100% oil free screw air compressor, its zero emission can protect the environment efficiently. |
水——潤滑、密封、冷卻Water——Lubrication, Sealing and Cooling
|
理想的等溫壓縮；高效（大排氣量）；低溫壓縮（約40℃）；無需中間冷卻器和后冷卻器；低轉速；低噪聲、振動小、無需增速齒輪；潤滑水粘度低；和空氣可輕易分離。 |
Ideal isothermal compression;High efficiency (large air delivery);Low temperature compression ;No need of the inter cooler and after cooler;Low rotation speed; Low noise, low vibration and no need the overdrive gear;Low viscosity of lubrication water; Easy to be separated with air. |
無油螺桿空氣壓縮機的潤滑系統為單獨的供油循環單元，壓縮室與軸承之間由高性能機械密封組件嚴密地分隔開來，潤滑油只能在其封閉區域內流動，不能進入壓縮室，壓縮室為不含油的純空氣，稍加除水除塵的后處理后，可獲得100%純凈的壓縮空氣。
The lubrication system of Oil Free Screw Air Compressor is an independent oil supply circulating unit. Compression chamber and bearing are separated by mechanical sealing parts of high performance, and lubrication oil only can flow in its enclosed area and not able to enter compression chamber, where has pure air without oil. After with after cooling system to remove water and dust, 100%pure compressed air can be achieved.
華控HKCW系列在國際市場經過10年以上驗證。在空氣品質，能源節約及高可靠度，皆證明其先進的技術品質，空氣與水的相容性高及其易取得，將成為未來壓縮氣體市場之趨勢！
減少工業廢棄物——間接減輕環境負擔
不使用油，無需廢油處理；無油過濾器、油氣分離器，減少工業廢棄物，避免油氣爆炸，引起火災的危險；減少了壓力損失，節能又環保，能源危機時代提倡的綠色產品；冷凝水中不含油，無需特殊處理。
單級壓縮、高效節能、維護簡單
單級壓縮使結構簡單；壓縮效率高于干式兩級空氣壓縮機；易損件少，拆裝方便，大幅降低維修成本和寶貴的時間。
HKCW series air end is tested by the market for more than 10 years. The air quality, energy conservation and high reliability proves its advanced technology. High compatibility of air and water, and the water which is easy to obtain, make it become the trend of the future compressed market.
Reduce the Industrial Waste——Lessen the Burden on the Environment
No use of oil, no waste oil to be dealed with.
No use of oil filter and oil separator, which reduce the industrial waste, avoid the oil-gas explosion and reduce the risk of fire, reduce the pressure loss, energy saving and environmental protection. Green products are recommended in the era of energy crisis.
No oil in the condensate water, no need for special treatment.
Single Stage Compression, High Efficiency, and Energy Saving, and Easy Maintenance
Single stage compression makes the structure easy.
Compression efficiency is higher than the two stage dry air compressor.
Less consumable parts, easy to be disassembled, reduce the maintenance cost and time greatly.
水潤滑無油螺桿空壓機技術參數表 Oil free water lubrication screw air compressor technical parameter
|
型號 |
容積流量/壓力 |
電機功率 |
聯接方式 |
潤滑水量 |
接管口徑 |
噪音 |
出氣溫度 |
外型尺寸 |
整機重量 |
冷卻方式 |
|
Model |
Air delivery /working pressure |
Power |
Driven method |
Lubricating Water amount |
Pipe diameter |
Noise |
Outlet temperature |
Overall dimension |
Total weight |
Cooling method |
|
單位Unit |
m³/min/bar |
KW |
/ |
L |
/ |
db(A) |
℃ |
mm |
kg |
/ |
|
HK-7.5S |
1.1/7 |
7.5 |
聯軸器coupling |
13 |
3/4" |
58 |
風冷air cooling：a+15，水冷water cooling：≤40℃ |
1300×800×1300 |
500 |
水冷或風冷air cooling or water cooling |
|
1.0/8 |
||||||||||
|
0.8/10 |
||||||||||
|
HK-11S |
1.8/7 |
11 |
20 |
1" |
56 |
1300×800×1300 |
540 |
|||
|
1.65/8 |
||||||||||
|
1.5/10 |
||||||||||
|
HK-15S |
2.4/7 |
15 |
26 |
1" |
57 |
1620×1004×1240 |
650 |
|||
|
2.2/8 |
||||||||||
|
2.1/10 |
||||||||||
|
HK-18.5S |
3.1/7 |
18.5 |
34 |
1" |
58 |
1600×910×1350 |
840 |
|||
|
2.9/8 |
||||||||||
|
2.7/10 |
||||||||||
|
HK-22S |
3.8/7 |
22 |
41 |
11/4" |
60 |
1450×1000×1560 |
870 |
|||
|
3.6/8 |
||||||||||
|
3.2/10 |
||||||||||
|
HK-30S |
5.3/7 |
30 |
55 |
11/4" |
60 |
1950×1050×1432 |
980 |
|||
|
5.0/8 |
||||||||||
|
4.3/10 |
||||||||||
|
HK-37S |
6.6/7 |
37 |
70 |
11/4" |
60 |
1700×1100×1630 |
1000 |
|||
|
6.2/8 |
||||||||||
|
5.7/10 |
||||||||||
|
HK-45S |
8.0/7 |
45 |
87 |
11/2" |
63 |
2150×1300×1590 |
1060 |
|||
|
7.7/8 |
||||||||||
|
6.9/10 |
||||||||||
|
HK-55S |
10.5/7 |
55 |
109 |
2" |
65 |
2200×1400×1540 |
1250 |
|||
|
9.8/8 |
||||||||||
|
8.7/10 |
